Albarakah 165 ft Radial Clear-Span Pavilion
Comprehensive Architectural & Pre-Engineered Building (PEB) Digital Twin Portfolio. Integrating high-precision 3D WebGL BIM models, complete 10-sheet 2D contract drawings, reconciled BOQ takeoff (39.84 MT Steel), commercial EPC quotation, and forensic site survey clash remediation for the Albarakah Marquee Complex.
3D BIM Twin Quick Jump
Apex Height: 9,117 mm
Diameter: 50.16 m
Clear-Span Diameter
165.0 ft
50.16 m Outer Ø
Apex Ridge Height
9,117 mm
29 ft 11 in Peak
Total PEB Steelwork
39.84 MT
39,844 kg Monolithic
Ring-1 Crown Hub
2,153.9 kg
5.58m Ø Compression Ring
Architectural Roof PVDF
23,950 sq.ft
2,225 m² 1,050 GSM Fabric
Turnkey Contract Sum
Rs. 63.11M
Approx $225,398 USD
3D Interactive BIM Digital Twin
Full-scale parametric 3D model with realistic architectural daylight, sunset, and gala evening illumination. Features live layer filtering, single rafter studio mode, column TOC deviation heatmaps, and raycasting inspection.
2D Architectural & Shop Drawings
Complete 10-sheet contract set including master circular setting-out plans, column TOC levels, portal elevations across 10 grids, concentric purlin layouts, and Tekla Ring-1 production shop drawings.
Commercial Quotation & EPC Proposal
Itemized turnkey commercial quotation detailing PEB steel supply, crane rigging, PVDF tensile fabric, polyurethane coatings, and civil concrete substructure, benchmarked against historical Albarakah account rates.
BOQ & Detailed Material Takeoff
Certified material schedules covering 39,844 kg structural steelwork, 192 heavy foundation anchor bolts, 2,225 m² PVDF tensile membrane, and 348.1 m³ concrete substructure with CSV export.
Ring-1 Compression Crown Hub
Technical design dossier for the 5,580 mm OD central compression crown. Weight breakdown (2,153.90 kg), 20 radial outrigger plates, bevel angle geometry, and 50-Ton crane lifting analysis.
Site Survey Audit & Clash Diagnostics
Forensic audit of all 20 existing column pedestals. Details TOC level mismatches up to +65mm, radial drift (-743mm to +858mm), and the Fusion Developers engineered remediation schedule.
Engineering Safety Certification & Structural Verdict
Fully Safe to Execute subject to strict adherence to Fusion Developers remediation protocol.
Presentation View
Structural BIM Layers
RAFTER BAY 1
PEB Member
Main Radial Rafter Truss
Built-up tapered I-section with dual moment haunches.
Material Profile:
ASTM A36
Structural Note:
3D BIM STUDIO
|
Orbit: Left Drag
|
Pan: Right Drag
|
Click Member to Inspect
Drawing Portfolio
10 SheetsOfficial Contract & Shop Drawings Detailed by Fusion Developers
Client Package Rev 03

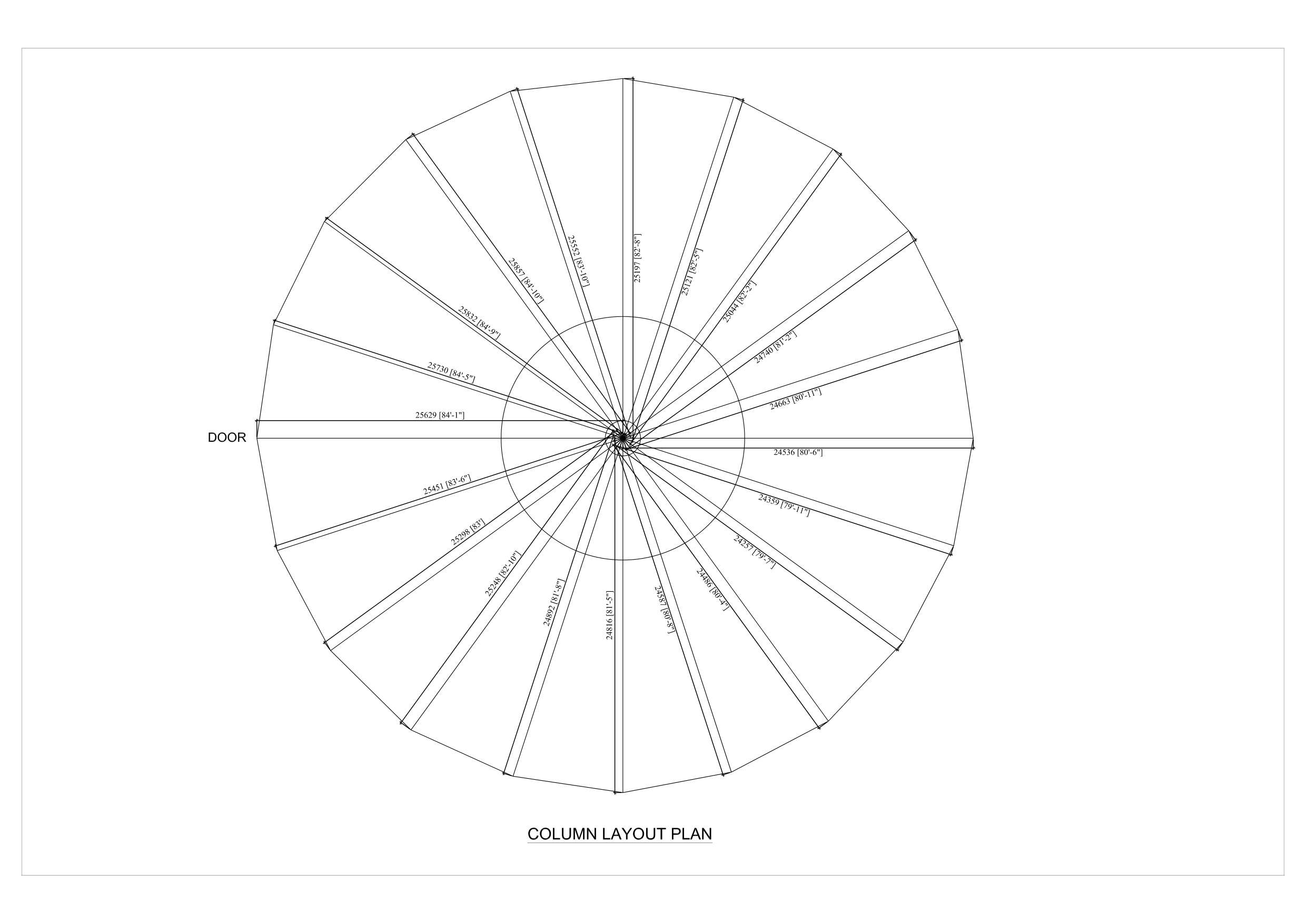

SHEET A-101
Master Circular Marquee Geometry & Radius Survey Plan
General Arrangement Sheet E-01: 50.16m Ø Radial Layout with Surveyed Coordinates
Scale: As Detailed | Design: Fusion Developers
Click the sheet drawing to view full 7000x5000 high-resolution architectural scan in a new window.
>
Commercial Proposal & EPC Cost Estimate
Ref: FD-QT-2026-ABM165 Rates Verified vs Albarakah Accounts165 ft (50.16m Ø) Radial PEB Clear-Span Tension Dome • Turnkey Architectural Proposal by Fusion Developers
Client & Project Entity
Albarakah Marquees & Grand Event Venues
Board of Directors / Project Sponsorship
Location: Albarakah Marquee Complex, Punjab, Pakistan
Turnkey EPC Contractor & Architect
FUSION DEVELOPERS
Architecture • Structural PEB Systems • Turnkey Execution
Commercial Proposal Ref: FD-QT-2026-ABM165-REV03
Net Contract Sum (Current Scope)
PKR 63,111,374
Approx $225,398 USD • Turnkey EPC Package
PEB Steelwork (39.84 MT)
Rs. 13,482,368
Avg Rate: Rs. 338.4/kg (Shop Fab + Supply)
Erection, Crane & Shoring
Rs. 3,636,995
50-Ton Crane + Falsework Tower + Rigging
Tensile Roof & Curtains
Rs. 20,245,710
23,950 sq.ft 1,050 GSM PVDF @ Rs. 585/sq.ft
Civil Concrete & Rebar
Rs. 19,745,350
348.1 m³ C30 Concrete + 38.3 MT Rebar
Delivery Timeline
50 Working Days
Concurrent Civil/Fab • Rapid Handover
Material Pricing Forensic Benchmark:
Unit rates reflect actual Albarakah project accounts procurement data (Ref: ABM/FIN/2026-FINAL / Bazar Al-Hadeed #325). Baseline raw PEB steel plates verified at Rs. 236.70/kg, secondary HR plates at Rs. 215–252/kg, 1-1/2" anchor bolts at Rs. 1,550/ea, and certified fabrication/erection labour at Rs. 88.50/kg, fully indexed for current delivery.
Division 01: Pre-Engineered Building (PEB) Structural Steelwork Fabrication & Supply
Subtotal: Rs. 13,482,368| Item | Component / Trade Description | Technical Specification / Profile | UOM | Quantity | Unit Rate (PKR) | Total Amount (PKR) |
|---|---|---|---|---|---|---|
| 1.01 | Ring-1 Compression Crown Hub | 5,580mm OD Monolithic Drum, 8mm Flanges/Webs, 20 Cleats | KG | 2,153.90 | 365.00 | 786,173.50 |
| 1.02 | Main Radial Truss Rafters (RAF 1–5 + Stubs) | 20 Radial Bays, Built-up I-Sections (Web 5mm, Flanges 8mm) | KG | 19,582.00 | 335.00 | 6,559,970.00 |
| 1.03 | Perimeter Columns (COL 1–13 Fabricated Pieces) | 20 Columns, Heavy Steel Tube/Built-up with 24mm Base Plates | KG | 5,125.56 | 330.00 | 1,691,434.80 |
| 1.04 | Concentric Roof Purlins (P-1 to P-23 Rings) | Cold-Formed High-Yield Galvanized Z/C Purlins (14 Rings) | KG | 6,192.88 | 310.00 | 1,919,792.80 |
| 1.05 | Circumferential Struts & Wind Bracing Systems | CH-1 to CH-6 Circular Hollow Struts & High-Tensile Rods | KG | 5,667.99 | 320.00 | 1,813,756.80 |
| 1.06 | Heavy Foundation Anchor Bolts & Setting Templates | 1-1/2" (96 Nos @ 1,550) + 3/4" (96 Nos @ 950) Gr 8.8 High-Tensile | SET | 192.00 | 1,250.00 | 240,000.00 |
| 1.07 | High-Strength Structural Hardware & Splice Bolts | M20, M24 Grade 8.8 / 10.9 Hot-Dip Galvanized Bolt Assemblies | KG | 1,122.00 | 420.00 | 471,240.00 |
Division 02: Site Logistics, Heavy Crane Hoisting & Falsework Shoring Tower
Subtotal: Rs. 3,636,995| Item | Component / Trade Description | Operational Scope / Plant Specs | UOM | Quantity | Unit Rate (PKR) | Total Amount (PKR) |
|---|---|---|---|---|---|---|
| 2.01 | Central Falsework Shoring Tower (+9.12m) | Heavy Modular Cuplok Scaffolding Tower, Hydraulic Lowering Jacks | LUMP | 1.00 | 550,000.00 | 550,000.00 |
| 2.02 | 50-Ton Telescopic Mobile Crane Plant | Ring-1 Hoisting & 20 Radial Rafter Tandem Lifts (14 Working Days) | DAYS | 14.00 | 65,000.00 | 910,000.00 |
| 2.03 | Certified PEB Erection & Rigging Crew Labour | Assembly, Plumbing, Optical Alignment & High-Torque Calibrated Tightening | KG | 39,844.33 | 45.00 | 1,792,994.85 |
| 2.04 | Flatbed Trailer Freight Logistics (12 Trips) | Workshop / Sheikhupura / Badami Bagh to Marquee Site Delivery | TRIPS | 12.00 | 32,000.00 | 384,000.00 |
Division 03: Architectural Tensile Fabric Roof Membrane & Sidewalls
Subtotal: Rs. 20,245,710| Item | Component / Trade Description | Fabric Architecture Specs | UOM | Quantity | Unit Rate (PKR) | Total Amount (PKR) |
|---|---|---|---|---|---|---|
| 3.01 | Primary Clear-Span Tensile Roof Canopy | 1,050 GSM High-Tenacity PVDF Polyester, Class B1 Fire Retardant | SQ.FT | 23,950.00 | 585.00 | 14,010,750.00 |
| 3.02 | Perimeter Sidewall Curtains & Gable Infill | 850 GSM Translucent White PVC/PVDF with Heavy Sliding Rollers | SQ.FT | 8,988.00 | 420.00 | 3,774,960.00 |
| 3.03 | Aluminum Keder Tracks & Stainless Hardware | Anodized 6061-T6 Extruded Keder Profiles, SS316 12mm Tension Cables | LUMP | 1.00 | 1,480,000.00 | 1,480,000.00 |
| 3.04 | Canopy Pre-Stressing & Dual-Axis Calibration | Hydraulic Pre-Tensioning across 20 Radial Bays to Prevent Ponding | LUMP | 1.00 | 980,000.00 | 980,000.00 |
Division 04: Surface Preparation, Epoxy Primer & Polyurethane Topcoat
Subtotal: Rs. 2,136,750| Item | Component / Trade Description | Protective Coating Specification | UOM | Quantity | Unit Rate (PKR) | Total Amount (PKR) |
|---|---|---|---|---|---|---|
| 4.01 | Sa 2.5 Abrasive Grit Blasting / Power Tool Prep | Mill Scale & Rust Removal to ISO 8501-1 Sa 2.5 Standard | SQ.M | 3,850.00 | 110.00 | 423,500.00 |
| 4.02 | Zinc Phosphate High-Build Epoxy Primer (2 Coats) | 75 Micron DFT Anti-Corrosive Barrier Coating | SQ.M | 3,850.00 | 185.00 | 712,250.00 |
| 4.03 | Aliphatic Polyurethane (PU) Architectural Topcoat | 50 Micron DFT UV-Stable Gloss Finish (RAL 9010 Architectural White) | SQ.M | 3,850.00 | 260.00 | 1,001,000.00 |
Division 05: Civil Substructure & Reinforced Concrete Foundations
Subtotal: Rs. 19,745,350| Item | Component / Trade Description | Civil Structural Specifications | UOM | Quantity | Unit Rate (PKR) | Total Amount (PKR) |
|---|---|---|---|---|---|---|
| 5.01 | Bulk Trench & Footing Pit Excavation | 20 Isolated Column Pits + Continuous Circumferential Ring Beam | CU.M | 450.00 | 650.00 | 292,500.00 |
| 5.02 | Lean Concrete Blinding (1:4:8) | 100mm Screed Bed under all Isolated Footings and Grade Beams | CU.M | 32.00 | 14,500.00 | 464,000.00 |
| 5.03 | High-Yield Deformed Steel Rebar (Grade 60) | ASTM A615 Grade 60 (fy = 420 MPa) Cut, Bent, Placed & Bound | MT | 38.30 | 268,000.00 | 10,264,400.00 |
| 5.04 | Structural Reinforced Concrete (C30 / 3,000 PSI) | Ready-Mix Concrete with Superplasticizers for Footings & Pedestals | CU.M | 316.10 | 24,500.00 | 7,744,450.00 |
| 5.05 | Steel Formwork, Anchor Templates & Non-Shrink Grout | Precision Setting of 20 Bolt Groups + High-Strength Base Grouting | LUMP | 1.00 | 980,000.00 | 980,000.00 |
Division 06: Structural BIM Engineering, 3D Digital Twin & Quality Sign-Off
Subtotal: Rs. 1,730,000| Item | Component / Trade Description | Consultancy & Quality Deliverables | UOM | Quantity | Unit Rate (PKR) | Total Amount (PKR) |
|---|---|---|---|---|---|---|
| 6.01 | Full Architectural & Structural Engineering Set | 10 Certified Production Drawings, 3D BIM Twin, Third-Party Vetting | LUMP | 1.00 | 1,250,000.00 | 1,250,000.00 |
| 6.02 | Non-Destructive Testing (NDT) & Quality Certification | Ultrasonic Testing on Ring-1 Butt Welds, Bolt Torque Verification | LUMP | 1.00 | 480,000.00 | 480,000.00 |
Executive Cost Summary & Contract Grand Total
Comprehensive reconciliation of all trade divisions under Turnkey EPC model
Validity: 30 Calendar Days
Division 01: PEB Structural Steelwork (39.84 MT)
Rs. 13,482,368
Division 02: Logistics, 50T Crane & Falsework
Rs. 3,636,995
Division 03: Tensile Membrane Roof & Sidewalls
Rs. 20,245,710
Division 04: Surface Prep, Epoxy Primer & PU Topcoat
Rs. 2,136,750
Division 05: Civil Substructure & Reinforced Concrete
Rs. 19,745,350
Division 06: BIM Engineering, Digital Twin & NDT Sign-Off
Rs. 1,730,000
Site Safety, Overhead & Contingency Allowance (3.5%): Rs. 2,134,201
Fixed Turnkey Price Guarantee • Zero Hidden Variations
Net Contract Sum
PKR 63,111,374
Equivalent to approx $225,398 USD
Commercial Payment Milestone Schedule
Milestone 1: 30% Advance Mobilization
Upon contract execution & production shop drawing sign-off
Rs. 18,933,412
Milestone 2: 35% Procurement & Fabrication
Against factory inspection & delivery of steel / fabric to site
Rs. 22,088,981
Milestone 3: 25% Ring Hoisting & Rafter Erection
Upon full ring de-propping and complete skeletal framework erection
Rs. 15,777,844
Milestone 4: 10% Final Retention & Handover
Upon tensile canopy tensioning, water tightness test & completion certificate
Rs. 6,311,137
Warranties, Guarantees & Contract Terms
15-Year Structural Frame Warranty: Fusion Developers warrants the monolithic steel skeleton, Ring-1 crown, and rafter connections against structural distress.
10-Year Tensile PVDF Membrane Warranty: Full manufacturer backing against UV degradation, fungus, fungal discoloration, and seam delamination.
5-Year Anti-Corrosion Warranty: Multi-layer epoxy/aliphatic polyurethane protective coating guaranteed against peeling or blister formation.
50 Working Days Execution Period: Rapid site mobilization and concurrent civil execution ensure turnkey gala readiness on schedule.
FUSION DEVELOPERS — CORPORATE SEAL
Director of Structural Engineering & Turnkey Architecture
Digitally Verified & Approved for Contract Execution
Client Acceptance Endorsement
Board of Directors, Albarakah Marquees
Date: ________________________
>
Bill of Quantities (BOQ) & Material Takeoff
Contract ScheduleAlbarakah 165 ft (50.16m Ø) Radial Clear-Span Pavilion • Certified by Fusion Developers
Total Structural Steelwork
39.84 Metric Tons
39,844 kg (PEB Skeleton + Crown)
Ring-1 Compression Crown
2,153.90 kg
5.58m Ø Monolithic Steel Drum
Architectural Roof Membrane
23,950 sq.ft
2,225 m² High-Tenacity PVDF Canopy
Reinforced Concrete Substructure
348.10 m³
Footings, Pedestals & Slab (38.3T Rebar)
Trade Category 1: Structural Steelwork & PEB Superstructure
Subtotal: 39,844.33 kg (~39.84 MT)| Item # | Description & Specification | Profile Size | Material Grade | Qty | Unit Wt (kg) | Total Wt (kg) |
|---|---|---|---|---|---|---|
| 1.1 | Central Compression Crown Hub (`Ring-1`) with 20 radial outriggers | 5580mm OD drum, PL 200x12, FL 8x191, PL 5x300 | ASTM A36 | 1 Assm | 2,153.90 | 2,153.90 |
| 1.2 | Perimeter Tapered Portal Columns (`COL-1` to `COL-13`) | Built-up I-section: Web PL 5x600, Flanges PL 8x175, BP 24mm | ASTM A36 | 20 Nos | ~256.28 | 5,125.56 |
| 1.3 | Radial Main Rafters: Eave Knee Haunch Segment (`RAF-1`) | L=6133mm; Tapers 600->300mm; Web PL 5, Flanges FL 8x191 | ASTM A36 | 20 Nos | 254.50 | 5,090.00 |
| 1.4 | Radial Main Rafters: Lower Prismatic Roof Segment (`RAF-2`) | L=6134mm; Straight 300mm; Web PL 5x300, Flanges FL 8x191 | ASTM A36 | 20 Nos | 219.60 | 4,392.00 |
| 1.5 | Radial Main Rafters: Mid-Span Belly Haunch Drop (`RAF-3`) | L=2184mm; Deepens 300->550mm; Web PL 5, Flanges FL 8x191 | ASTM A36 | 20 Nos | 87.80 | 1,756.00 |
| 1.6 | Radial Main Rafters: Mid-Span Belly Haunch Rise (`RAF-4`) | L=2184mm; Tapers 550->300mm; Web PL 5, Flanges FL 8x191 | ASTM A36 | 20 Nos | 87.80 | 1,756.00 |
| 1.7 | Radial Main Rafters: Upper Crown Roof Segment (`RAF-5`) | L=6134mm; Straight 300mm; Web PL 5x300, Flanges FL 8x191 | ASTM A36 | 20 Nos | 219.60 | 4,392.00 |
| 1.8 | Apex Transition Stubs & Moment Splice Plates (`sp-1`, `sp-2`) | Variable stubs (174~2129mm) + PL 12mm end-plates & gussets | ASTM A36 | Lot | — | 2,196.00 |
| 1.9 | Concentric Roof Purlin System (`P-1` to `P-23`, 14 Rings) | Cold-formed pressed Z/C sections spanning 20 bays | A36 / High Tensile | 412 Pcs | Varies | 6,192.88 |
| 1.10 | Circumferential Structural Struts & Wind Bracing (`ST-1` to `ST-22`) | Tubular/angle diagonal brace members and eave struts | ASTM A36 | 60 Pcs | Varies | 5,667.99 |
| 1.11 | High-Strength Structural Fasteners & Anchor Bolts | M20 Grade 8.8 HSFG bolts, M12 purlin bolts, 24mm J-anchors | Gr 8.8 / Gr 55 | 3,800 Pcs | — | 1,122.00 |
Trade Category 2: Architectural Tensile Membrane & Envelope
Total Area: 23,950 sq.ft (2,225 m²)| Item # | Description & Specification | Material Grade & Tech Specs | Unit | Quantity | Installation Method |
|---|---|---|---|---|---|
| 2.1 | Architectural Tensile Roof Canopy Membrane | 1050 g/m² PVDF/PTFE White, Tensile Strength 5800N/5cm, B1 Flame retardant | m² (sq.ft) | 2,225 (23,950) | Keder rail clamping onto rafter flanges with tension jacks |
| 2.2 | Perimeter Modular Sidewall Curtains & French Windows | 850 g/m² Translucent PVC with clear arched French window panels & heavy-duty zippers | m² (sq.ft) | 835 (8,988) | Sliding track suspended from eave perimeter beam |
| 2.3 | Crown Lantern Cap & Natural Daylighting Membrane | Double-layer transparent ETFE/clear PVC tension disk over Ring-1 throat | m² (sq.ft) | 24.5 (263) | Radial clamping bar bolted to Ring-1 top cover plate |
| 2.4 | Perimeter Eaves Rainwater Gutter & Flashing System | 2.0mm pressed galvanized sheet, continuous circumference (50.16m Ø circle) | R.Mtr | 157.60 | Continuous bolted brackets at column knee joints |
| 2.5 | Rainwater Downpipe Assemblies | 110mm Ø heavy-duty PVC/Alu downpipes with stainless cleanout shoes | Nos | 20 Locations | Clamped to exterior web of 20 perimeter columns |
Trade Category 3: Civil & Reinforced Concrete Substructure
Concrete: 348.1 m³ • Rebar: 38.3 MT| Item # | Description & Specification | Concrete Class / Grade | Unit | Volume / Qty | Remarks & Tolerances |
|---|---|---|---|---|---|
| 3.1 | Isolated Column Footings (1.8m x 1.8m x 0.4m depth) | Grade C25/30 Concrete (30 MPa cube strength) | m³ | 25.92 | 20 column footings cast on 75mm lean concrete blinding |
| 3.2 | Reinforced Concrete Pedestals (800mm x 800mm) | Grade C30/37 Concrete with non-shrink grout top finish | m³ | 6.40 | Requires rectification leveling to true FFL (+-3mm) |
| 3.3 | Perimeter Ring Ground Tie-Beam (300mm x 450mm) | Grade C25/30 Concrete tying all 20 isolated footings | m³ | 21.28 | 157.6 linear meters continuous perimeter ring beam |
| 3.4 | Grand Ballroom Floor Slab (150mm reinforced concrete) | Grade C25/30 Concrete with power-troweled hardener finish | m³ | 294.50 | 1,986.5 m² (21,382 sq.ft) monolithic slab over vapor barrier |
| 3.5 | Deformed Steel Reinforcement (Substructure & Slab) | Grade 60 Deformed Rebar (Fy = 420 MPa), cut, bent & tied | Metric Tons | 38.30 | High-yield reinforcement for footings, tie-beams and slab mesh |
>
Ring-1: 5.58m Ø Master Compression Crown
Weight: 2,153.90 kgFusion Developers Structural Engineering Detailing (Tekla Shop DWG pp. 1-2)
Outer Diameter
5,580 mm
Outer Radius $R=2,790 ext{mm}$ ($18.3 ext{ft}$)
Inner Throat Diameter
4,780 mm
Throat Radius $R=2,390 ext{mm}$ ($400 ext{mm}$ Box)
Total Assembly Weight
2,153.90 kg
Single Shop-Welded Crown Assembly
Thrust Equilibrium
Σ Fr = 0
Hoop Compression: $T = H / (2\sin 9^\circ)$

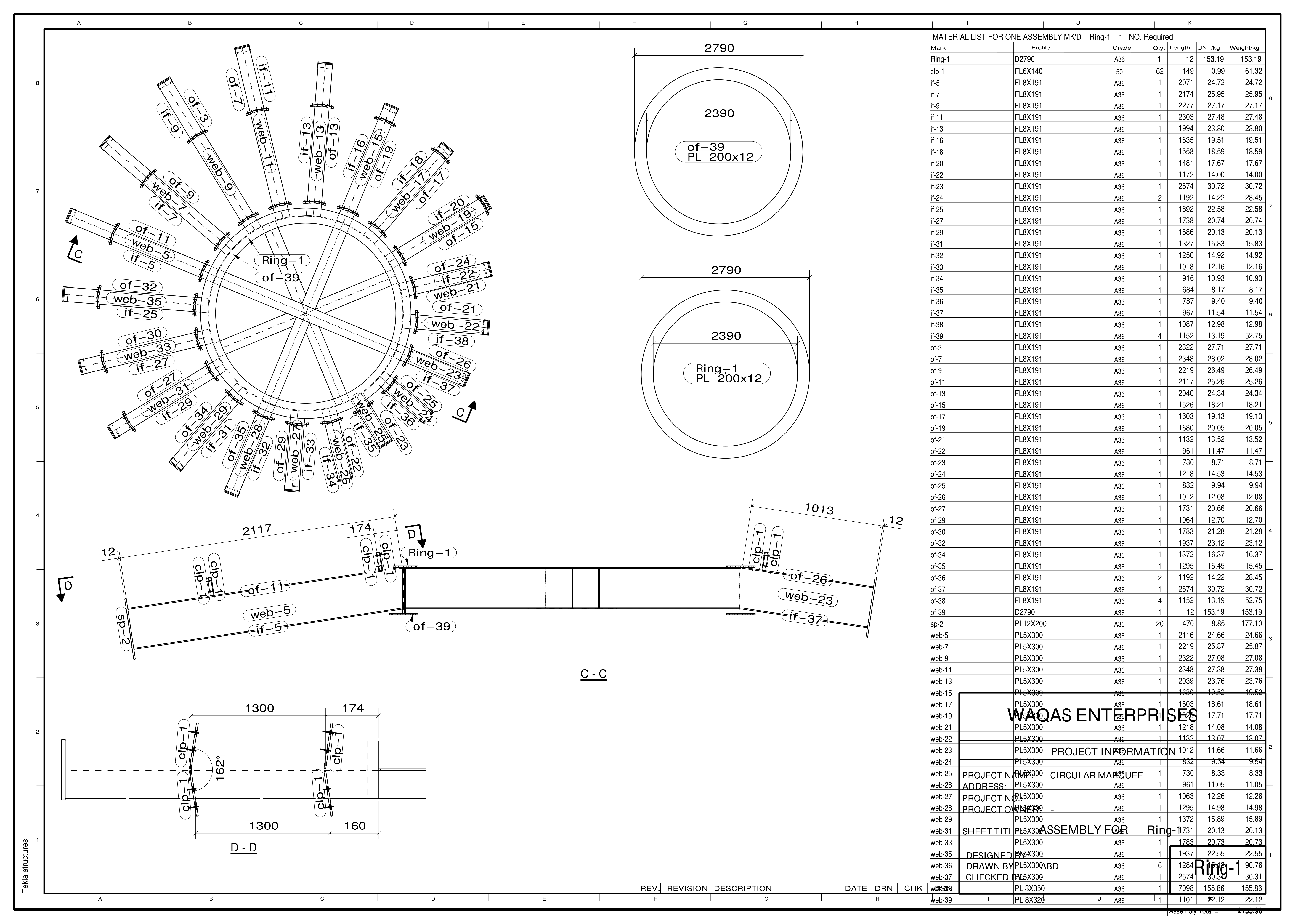

Tekla Structures Shop Drawing Sheet
CIRCULAR MARQUEE FABRICATION.pdf — Page 1 (Ring-1 Assembly)
Click drawing to view full ultra-high-resolution scan in new window.
Detailed Parts Schedule for Ring-1 (DWG pp. 1-2)
| Mark | Profile Size | Qty | Cut Length | Total Wt (kg) | Role in PEB Crown Hub |
|---|---|---|---|---|---|
| Ring-1 & of-39 | D2790 / PL 200x12 | 2 | Circular Ring ($R_{in}=2390, R_{out}=2790$) | 306.38 | Continuous circular top & bottom annular ring plates |
| sp-2 | PL 12x200 | 20 | 470 mm | 177.10 | Projecting Rafter Connection Shoes (6xM20 bolt holes) |
| clp-1 | FL 6x140 | 62 | 149 mm | 61.32 | Cleat clips with 4x14mmØ holes for purlins ($162^\circ$ chord) |
| web-5 to 35 | PL 5x300 | 20 | 730 mm to 2,348 mm | 365.10 | 20 Radial Outrigger Arms with 45mm/300mm roof slope bevel |
| web-36 | PL 5x300 | 6 | 1,284 mm | 90.76 | Internal box diaphragms |
| web-38 | PL 8x350 | 1 | 7,098 mm | 155.86 | Continuous heavy circumferential perimeter web plate |
| web-39 | PL 8x320 | 1 | 1,101 mm | 22.12 | High-shear throat transition diaphragm |
| if-5 to 39 | FL 8x191 | 25 | 684 mm to 2,574 mm | 489.84 | Inner throat flange segments ($R=2,390 ext{mm}$) |
| of-3 to 38 | FL 8x191 | 24 | 730 mm to 2,574 mm | 515.43 | Outer perimeter flange segments ($R=2,790 ext{mm}$) |
| Total Shop Assembly Weight: | 2,153.90 kg | ~2.15 Metric Tons (Monolithic Crown) | |||
>
Full Rafter Schedule: RAF-1 Through RAF-5
22.77m Prefab + StubsSegmented Pre-Engineered Tapered Rafter Design (20 Radial Bays, Dual Moment Haunches)
Dual Moment Haunch Longitudinal Profile
EAVE KNEE HAUNCH MID-SPAN BELLY HAUNCH CROWN SHOE (4,000 mm Length) (4,368 mm Length) (Ring-1) ┌───────────────┐ ┌───────────────┐ ┌───────┐ │ ▼ ▼ ▼ ▼ │ █▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀█───────┤ █ 600mm 550mm 300mm │Ring-1 │ █ ──┐ ┌───┴───┐ │5.58m Ø│ █ └─── 300mm ────────────────────────┘ └───────────────────────── 300mm ────────█───────┤ █ └───────┘ └── RAF-1 (6,133mm) ──┴── RAF-2 (6,134mm) ──┴── RAF-3 (2,184mm) ──┴── RAF-4 (2,184mm) ──┴── RAF-5 (6,134mm) ──┴─ Stub ─┘
5-Segment Prefabrication Bill of Materials
| Mark | Slope Length | Web Depth & Plate | Flanges | Structural Haunch Function | Qty (20 Bays) |
|---|---|---|---|---|---|
| RAF-1 | 6,133 mm | Tapers 600mm -> 300mm (PL 5) | FL 8x191 | Column Knee Haunch (4,000mm moment zone) | 20 Nos. |
| RAF-2 | 6,134 mm | Straight 300mm (PL 5x300) | FL 8x191 | Intermediate lower roof span | 20 Nos. |
| RAF-3 | 2,184 mm | Deepens 300mm -> 550mm (PL 5) | FL 8x191 | Mid-Span Belly Haunch Drop (at 15,244mm) | 20 Nos. |
| RAF-4 | 2,184 mm | Tapers 550mm -> 300mm (PL 5) | FL 8x191 | Mid-Span Belly Recovery (4,368mm belly) | 20 Nos. |
| RAF-5 | 6,134 mm | Straight 300mm (PL 5x300) | FL 8x191 | Upper roof span to Crown Ring-1 | 20 Nos. |
| Apex Stub | 174mm ~ 2,129mm | Transition shoe plate (PL 12x200) | FL 8x191 | Absorbs 1,601mm site survey error | 20 Nos. |
>
Full 20-Column Concrete & Steel Audit
Surveyed As-Built Geometry vs Design Clear Heights vs Fabricated Columns
Critical Clash Audit: Pedestals are cast with severe radial eccentricity ($1,601 ext{ mm}$ maximum deviation) and uneven levels up to $+65 ext{ mm}$ above FFL. While G.A. drawings specified custom clear heights ($5209$ to $5449 ext{ mm}$) to adapt, the shop drawings detailed all 9 pieces of COL-10 to a single uniform length of 5,384 mm, guaranteeing major erection failure if not re-detailed.
| # | Grid / Location | Tag | Surveyed Radius | Radial Dev (ΔR) | TOC Offset | GA Clear Ht | Fab Length | Height Clash | Status | Action |
|---|
>
FUSION DEVELOPERS
|
Architectural & Structural Transmittal Memo
Project Ref: FD-ALB-165-REV03 • Date: September 2026 • Client Presentation Package
OFFICIAL CLIENT SUBMITTAL
Transmitted To:
Board of Directors & Project Management
Albarakah Marquees & Grand Event Venues
Project: 165 ft ($50.16 ext{ m}$) Clear-Span Marquee Dome
Prepared By:
FUSION DEVELOPERS
Architecture • Structural Engineering • BIM Technologies
Director of Structural Architecture & PEB Systems
Executive Project Overview
Fusion Developers was commissioned to conduct the architectural review, 3D Building Information Modeling (BIM) synthesis, and structural engineering audit for the Albarakah 165 ft ($50.16 ext{ m}$) Clear-Span Circular Marquee Pavilion. The structure encloses an unobstructed 21,382 sq.ft ($1,986.5 ext{ m}^2$) grand ballroom utilizing a 20-bay radial Pre-Engineered Building (PEB) skeleton crowned by a central $5.58 ext{ m}$ diameter compression hub (`Ring-1`) at an apex clear height of $+9,117 ext{ mm}$.
Gross Floor Area
21,382 sq.ft
100% Column-Free Space
Nominal Diameter
50.16 Meters
164 ft 7 in True Circle
Central Ridge Height
9,117 mm
Clear to Ring-1 Underside
Eave Clear Height
5,209 ~ 5,449 mm
17.1 to 17.9 ft Perimeter
Critical Engineering Finding & Hold Directive
While the architectural spatial geometry and primary 5-segment rafter design are brilliantly conceived, our forensic survey audit identified that the site concrete pedestals were cast out-of-round with a massive 1,601 mm ($5.25 ext{ ft}$) radial eccentricity and elevation errors up to +65 mm. Furthermore, the fabrication shop detailed all 9 perimeter columns (`COL-10`) to an identical length of $5,384 ext{ mm}$, which directly clashes with the site conditions.
Architectural & Engineering Verdict: Steel erection must remain on HOLD until the 3-step civil & shop rectification protocol detailed in this dossier is executed.
Execution Roadmap for Client Delivery
1
Level Concrete Pedestals
Chisel down high concrete pedestals (Grids 2 & 3) to achieve a uniform Finished Floor Level ($\pm 3 ext{mm}$).
2
Re-Detail COL-10 Columns
Release revised shop cutting cards for the 9 `COL-10` pieces matching the true leveled elevations.
3
Central Shoring & Apex Stubs
Erect Ring-1 on temporary central tower at $+9,117 ext{mm}$ and field-cut the apex stubs to guarantee pure radial thrust equilibrium.
FD
FUSION DEVELOPERS
Architects of Record & Senior PEB Consultants
Digital Certificate Stamp: #FD-2026-ALB165
Contract Portfolio Package Rev 03
Delivered to Albarakah Client Representatives
